VHF High-Gain Omni Solutions

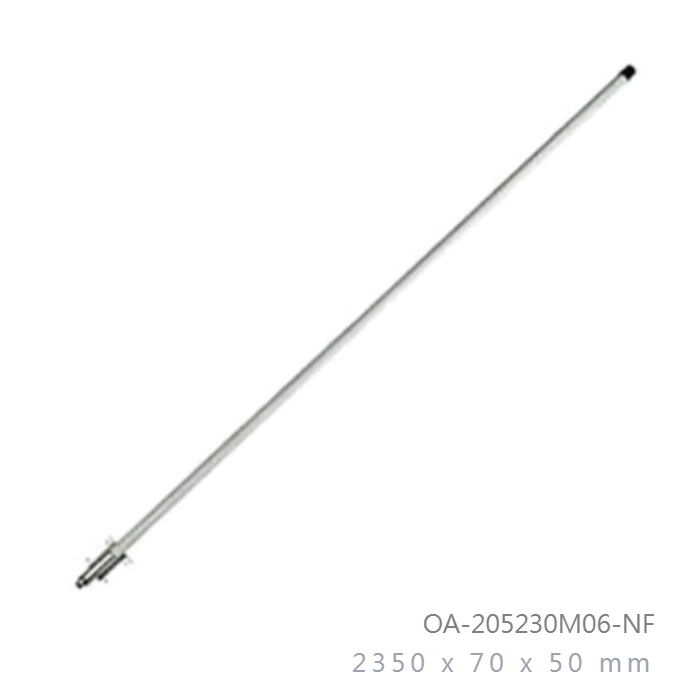

205 - 230 MHz High-Gain Collinear Omni Antenna
Professional industrial-grade high-gain collinear antenna array designed for 360-degree wireless distribution. Featuring a 2.35m fiberglass radome and copper internal elements, it is optimized for public wireless infrastructure and long-range video transmission.
Electrical Specifications
| Frequency Range | 205 MHz – 230 MHz |
| V.S.W.R (MAX) | ≤ 2.0:1 (≤ 1.3:1 @ 210-220 MHz) |
| Peak Gain | 6 dBi (5.5 dBi Avg.) |
| Radiation Type | Omni-Directional (360°) |
| Maximum Power | 250 Watts |
| Antenna Design | 1/4 Wavelength Collinear Dipole Array (Copper) |
Mechanical & Environmental
| Dimensions | 2350 x 70 x 50 mm |
| Total Weight (G.W.) | 1870 g |
| Connector Type | N-Female |
| Radome Material | White Fiberglass (Industrial Grade) |
| Wind Survival | > 150 MPH |
| Compliance | CE, FCC, RoHS Compliant |
Engineering Core Features
High-Gain Omni Radiation
Delivers a high 6 dBi gain with a tight 32-degree vertical beam-width, significantly extending the coverage range for multipoint public wireless and MMDS applications.
Integrated Surge Protection
Built-in DC-Short lightning protection provides a critical safeguard for connected radio equipment against atmospheric electrical discharge and static.
Precision Tactical Mounting
Includes heavy-duty tilt and swivel mast mount brackets (Stainless Steel/Aluminum), allowing for accurate vertical adjustment to optimize signal patterns in the field.
Industrial Weatherproofing
The 2.35m fiberglass radome is engineered for extreme durability, surviving wind speeds over 150 MPH and maintaining peak performance from -40°C to +60°C.
