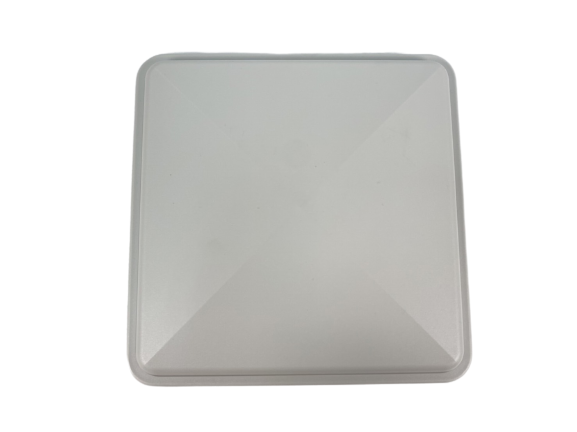

860MHz to 870MHz 9dBi RHCP Circular polarization Panel Directional Antenna860MHz to 870MHz 9dBi RHCP Circular polarization Panel Directional Antenna860MHz to 870MHz 9dBi RHCP Circular polarization Panel Directional Antenna

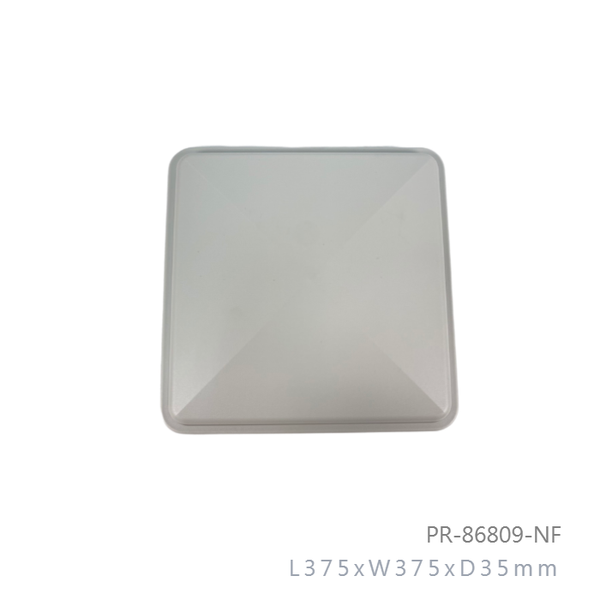

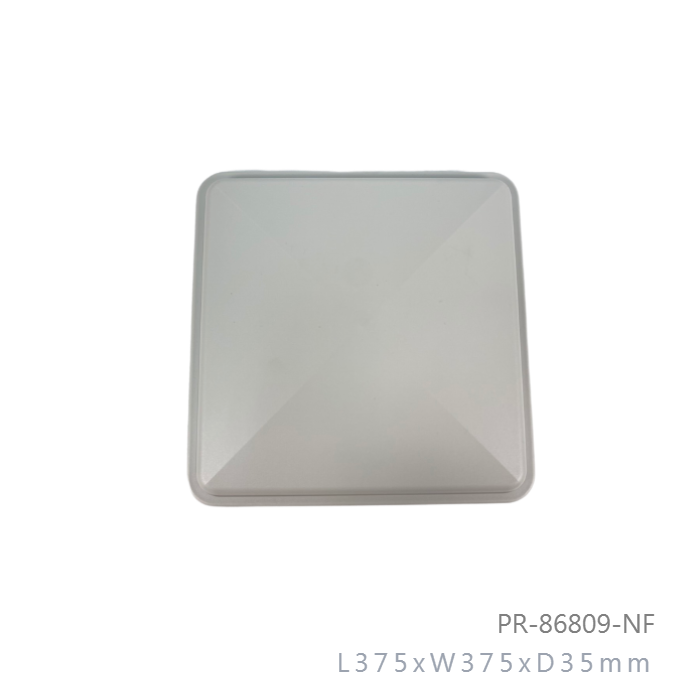

Model No: PR-86809-NF

  • Dimension : L375xW375xD35mm
  • Weight : 1.5 KG
  • Connector : N-Female
  • Beam-width : Eleva: 68deg Azimu.65deg
INQUIRY

Applications

  • 860MHz to 870MHz Band
  • Directional and multipoint applications

Features

  • Superior performance
  • Lightweight
  • All weather operation
  • DC Short lightning protection
  • Vertical Installation
  • Including tilt and swivel mast mounting kit

Frequency Range

860MHz - 870MHz

V.S.W.R (MAX)

868MHz: 1.5 :1

860MHz and 870MHz: <2.0

Antenna Type

Patch Type

Radiation Directional

Gain (Avg)

9 dBi

Polarization

Circular polarization

Maximum Power

15 Watts

Azimuth Beam-width

65 Deg

Elevation Beam-width

68 Deg

Sidelobes Level -12 dB

Impedance

50 Ohm

Antenna Design

One Patch

Internal Material

FR4(Taiwan)

Implant resistance 10K Ohm

Connector

N-Female

Length x Width(MAX)

375 x 375mm

Diameter (MAX)

35mm

Antenna Weight (G.W)

1200 g

Accessories (G.W)

300 g

Application Indoor / Outdoor

Radome Material

White ABS

Mount Style Pole Mount

Parts Material

Aluminum

Mounting Stainless Steel
Mount Adjustment +- 28deg

Wind Survival

Greater than 150MPH

Storage Temperature -20 to +80
Operating Temperature -20 to +60
Operating Humidity 10%~80% non-condensing
Storage Humidity

5%~80% non-condensing

Safety,Emission and other

CE, FCC, RoHS
