902MHz to 928MHz 6dBi Vertical or Horizontal Panel Directional Antenna N-Female

Model No: PA-915M06-NF

Datasheet:Download

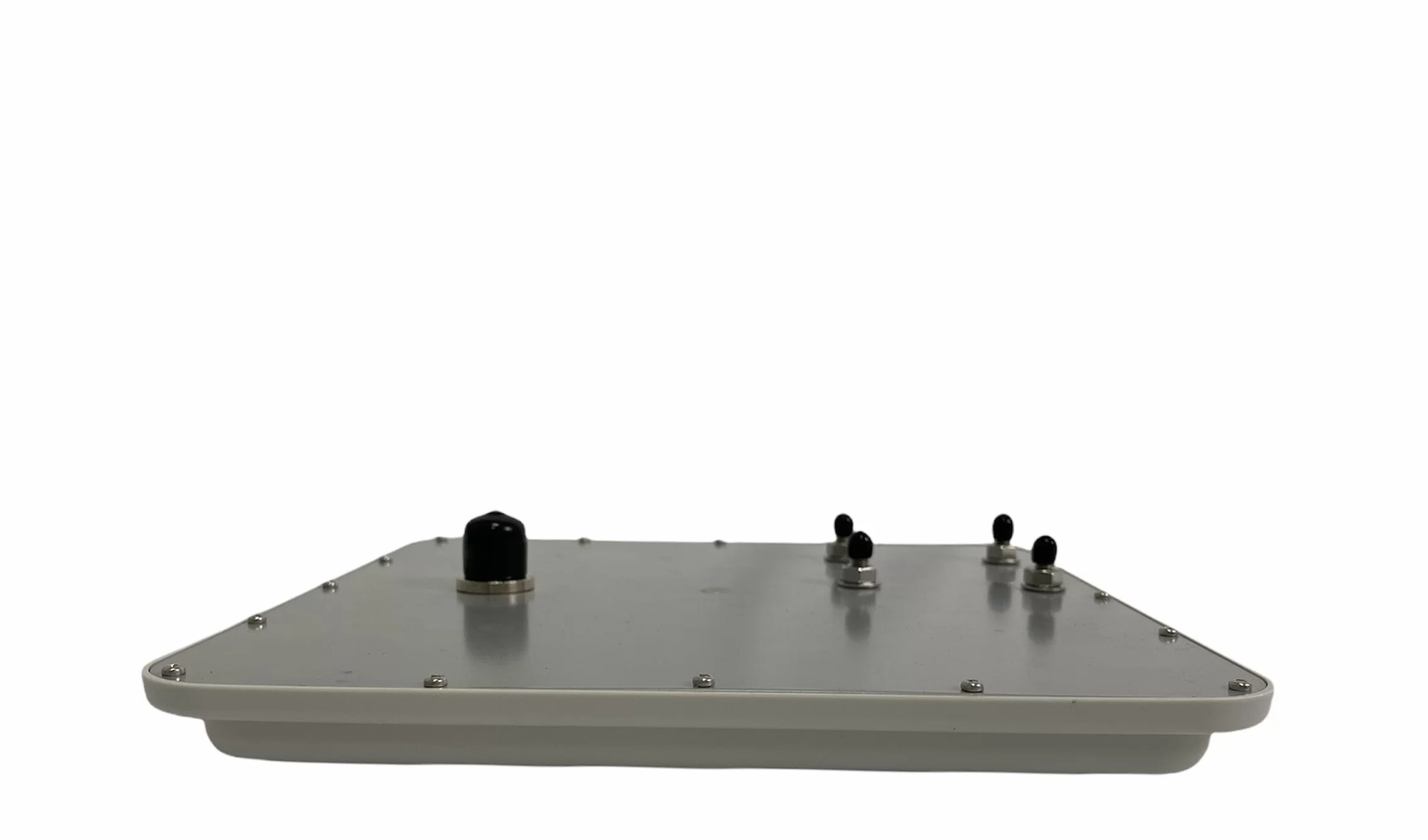

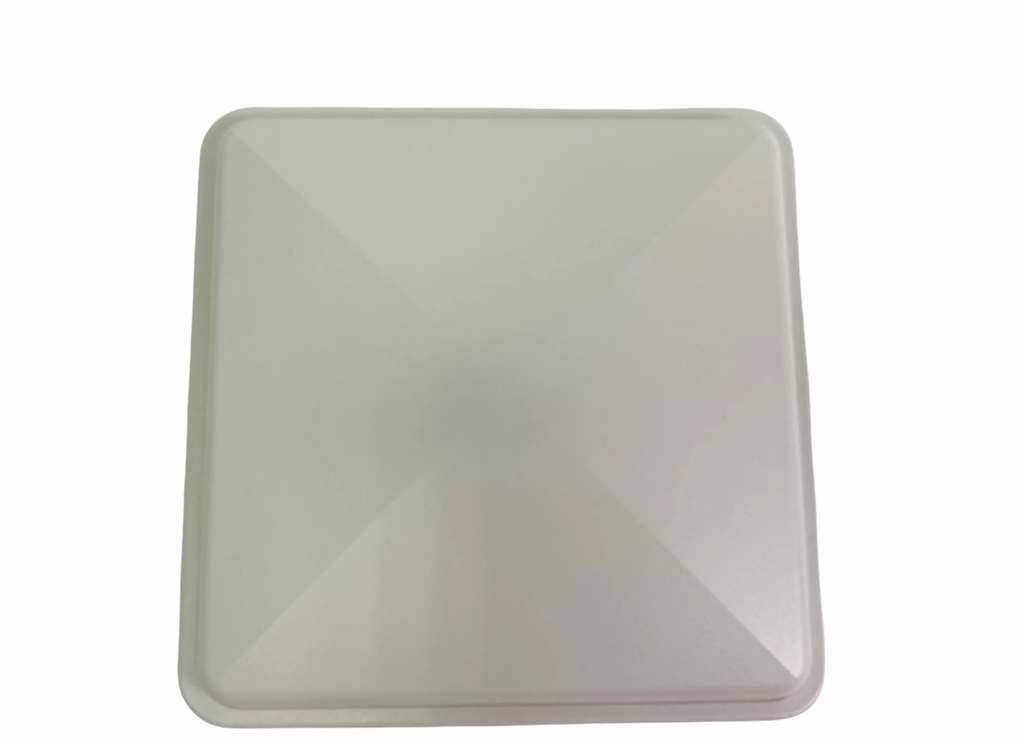

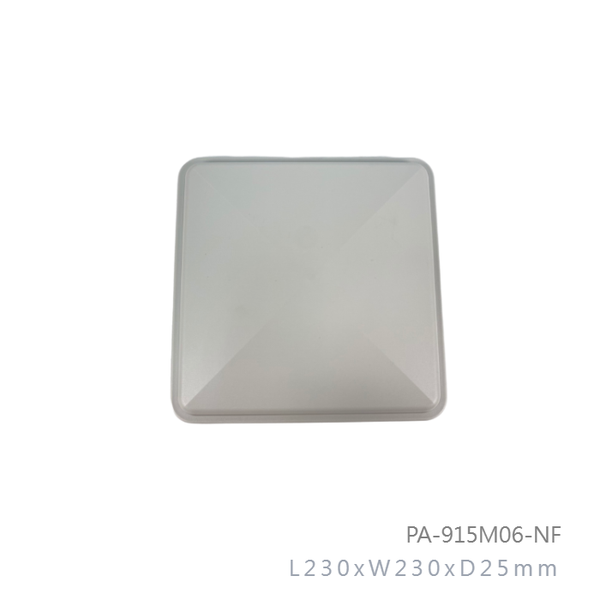

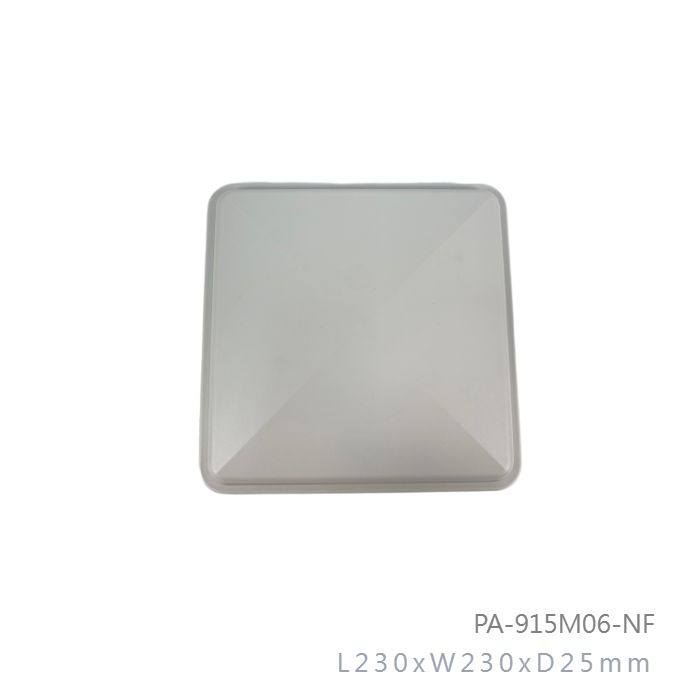

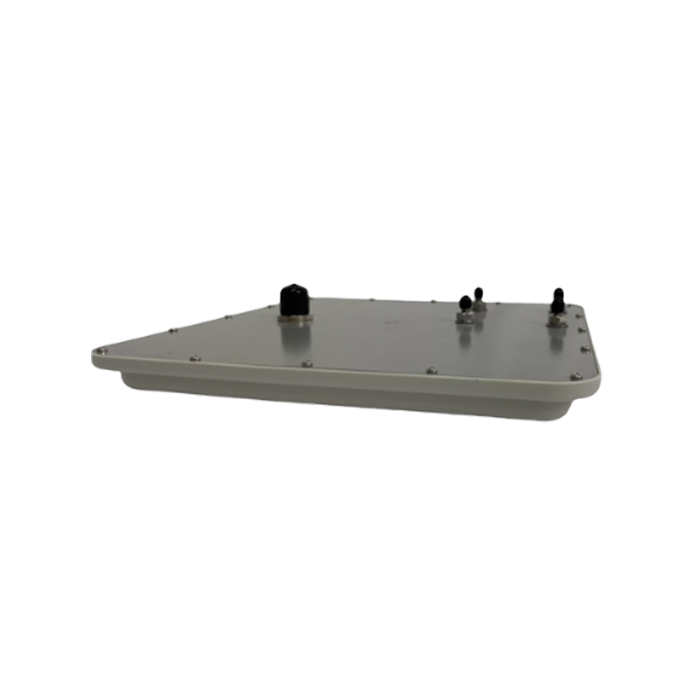

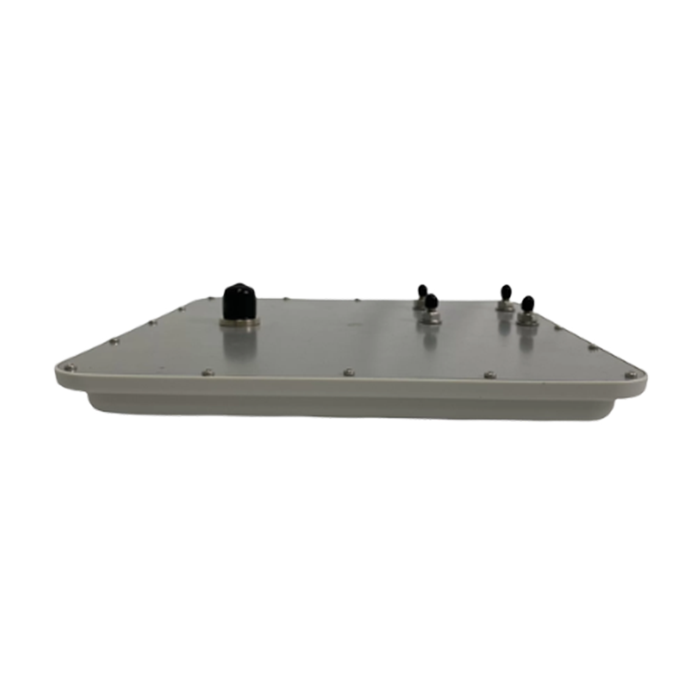

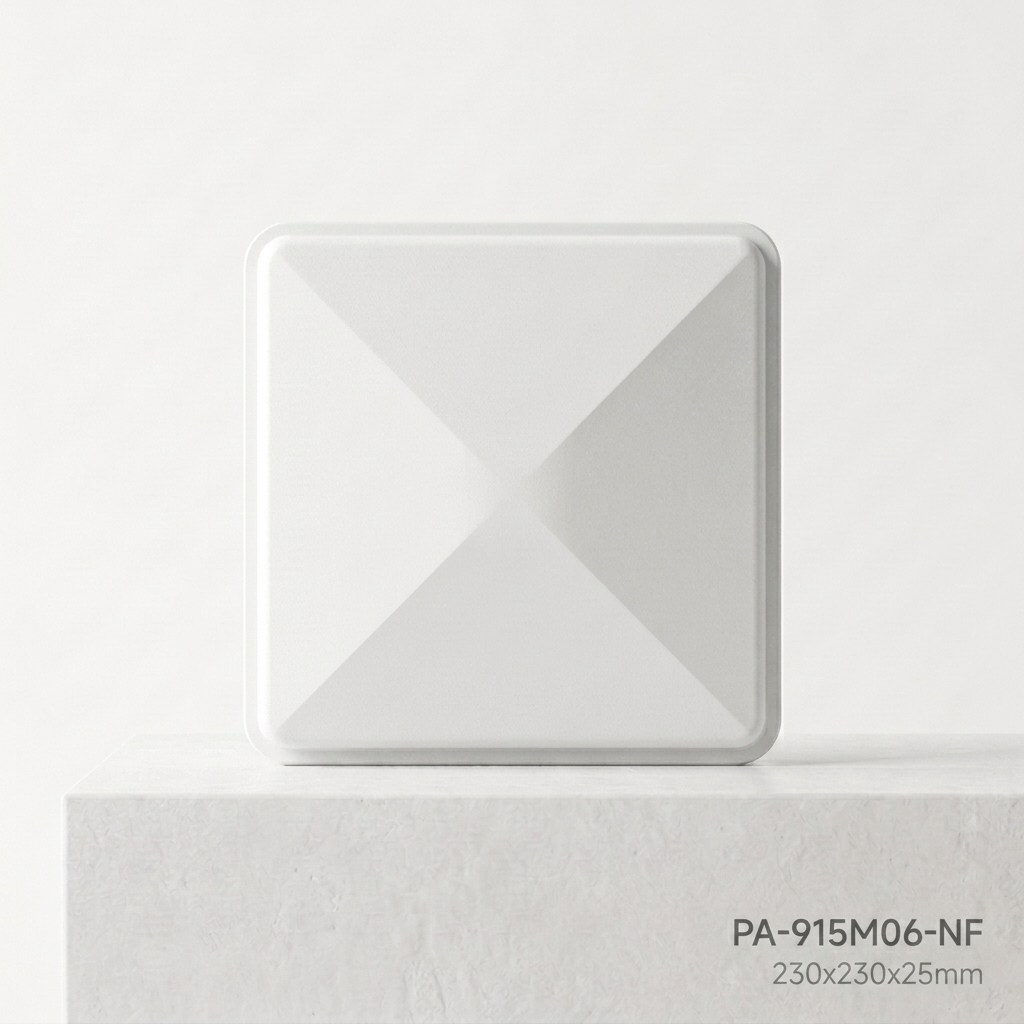

  • Dimension : L230xW230xD25mm
  • Weight :370g
  • Connector : N-Female
  • Beam-width : Horz.66 deg, Vert.55 deg
INQUIRY

Applications:

  • Operated at 902MHz to 928MHz Frequency Band N-Female
  • Directional Multipoint applications
  • Point to Point Bridge / MMDS / Hotspot
  • Public Wireless

Features:

  • Superior Performance
  • Good appearance design and lightweight
  • DC Short lightning protection
  • Outdoor pole mount installation
  • RoHS Compliant

A panel antenna is a directional antenna that is commonly used in broadcast engineering to get a wireless Internet connection. Directional antennas receive and broadcast a signal in a single direction, allowing for higher signal quality. In the developing world, technology such as panel antennas is utilized to extend the range and functionality of wireless Internet networks. A panel antenna is designed like a panel and is normally mounted on a mounting bracket that can be placed to the side or inside of a building. It can also be put on a swivel mount, which allows the user to position the antenna for the best signal concentration. This form of antenna is usually one-directional, with less movement side-to-side and up-and-down than an omnidirectional antenna, which may swivel and shift its position completely.

One set of packing included 2 U-bolts, L brackets and waterproof Tape

Frequency Range

902MHz to 928MHz

V.S.W.R (MAX)

915MHz: 1.5 :1

902MHz and 928MHz: <2.0

Antenna Type

Collinear

Radiation

Omni Directional

Gain (MAX)

6 dBi

Antenna Factor

24 dB/m

Polarization

Vertical or Horizontal

Maximum Power

50 Watts

Vertical Beam-width

18 Deg

Horizontal Beam-width

 Updating

Impedance

50 Ohm

Antenna Design

Dipole Array

Internal Material

Copper

Connector

N-Female

Length (MAX)

1095+/-5 mm

Diameter (MAX)

70 x 50mm

Antenna Weight (G.W)

 760 g

Accessories (G.W)

70 g

Application

Indoor / Outdoor

Radome Material

White Fiberglass

Parts Material

Aluminum

Mount Style

Pole Mount / Wall Mount

Mounting

Stainless Steel

Wind Survival

Greater than 150MPH

Storage Temperature

-20 to +80

Operating Temperature

-20 to +60

Operating Humidity

10%~80% non-condensing

Storage Humidity

5%~80% non-condensing

Safety, Emission and other

CE, FCC, RoHS
