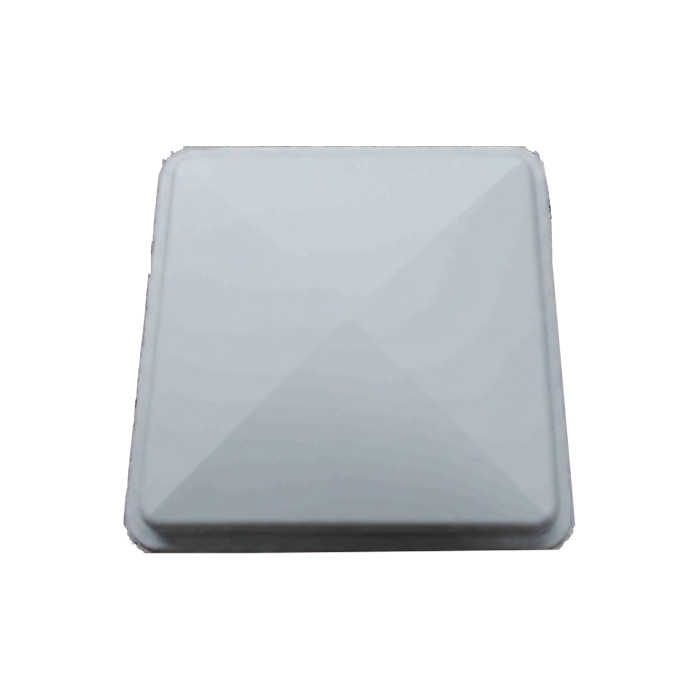

902MHz to 928MHz 9dBi Vertical or Horizontal Panel Directional Antenna N-Female

Model No: PA-915M09-NF

Beam-width:	Horz. 52°, Vert. 49°
Connector:	N-Female
Dimensions:	230 x 230 x 25 mm
Weight:	713 g
Impedance:	50Ω

DOWNLOAD DATASHEET

Quantity:

INQUIRY

Descriptions

915MHz High-Gain Patch Antenna

Model: PA-915M09-NF | 9 dBi | Directional Panel

The PA-915M09-NF is a high-performance directional patch antenna designed for the 900MHz ISM band, specifically tailored for LoRaWAN and RFID applications. With a robust 9 dBi gain and integrated tilt-swivel mounting, it provides superior beam control for point-to-point and multipoint links. Housed in a UV-protected ABS radome with an aluminum backplate, it offers unmatched Signal Integrity and environmental resilience for critical outdoor deployments.

Core Electrical Specifications

Frequency Range	902MHz to 928MHz
V.S.W.R (MAX)	1.5 : 1 (at 915MHz)
Average Gain	9 dBi
Polarization	Vertical or Horizontal
Beam-width	Horz. 52° / Vert. 49°
Front-to-Back Ratio	-19 dB
Maximum Power	15 Watts
Impedance	50 Ohm

Mechanical & Environmental Parameters

Dimensions (L x W x H)	230 x 230 x 25 mm
Radome Material	White ABS + UV Protection
Connector Type	N-Female

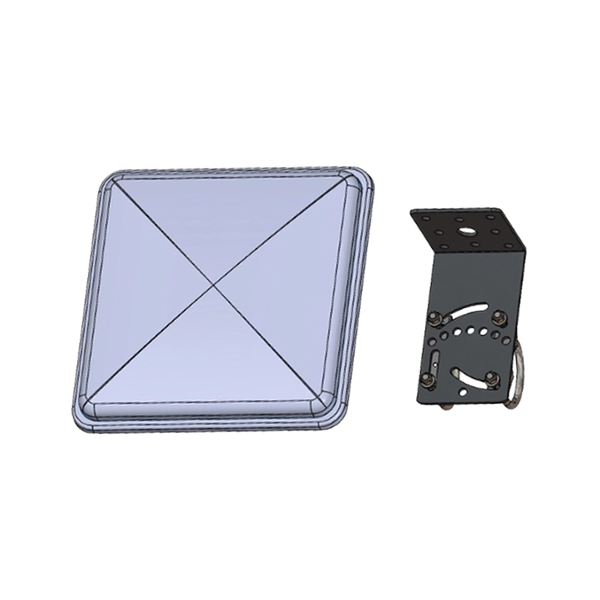

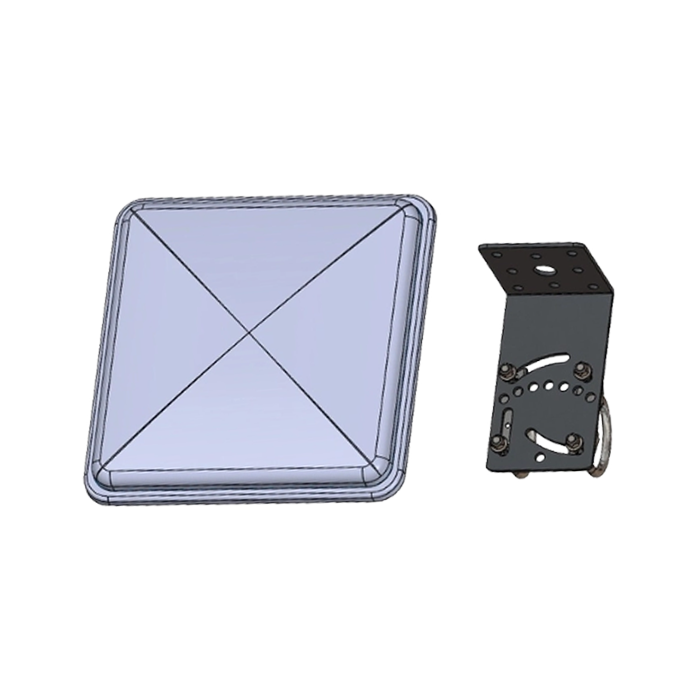

Mounting Style	Pole Mount (Incl. Tilt/Swivel Kit)
Mount Adjustment	± 28 Degrees
Wind Survival	> 150 MPH
Operating Temperature	-20°C to +60°C

Key Tactical & Engineering Features

Directional Patch Precision

Utilizes a single-patch design on high-grade FR4 material to deliver a focused signal beam, significantly reducing interference in multipoint environments.

Flexible Polarization

Engineered to support both Vertical and Horizontal polarization, allowing for versatile installation depending on network architecture and signal requirements.
