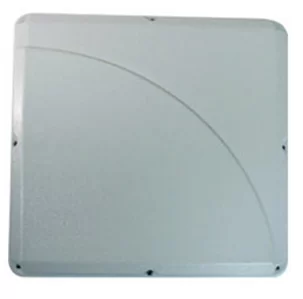

890MHz to 940MHz 9dBi Panel Directional Antenna890MHz to 940MHz 9dBi Panel Directional Antenna890MHz to 940MHz 9dBi Panel Directional Antenna

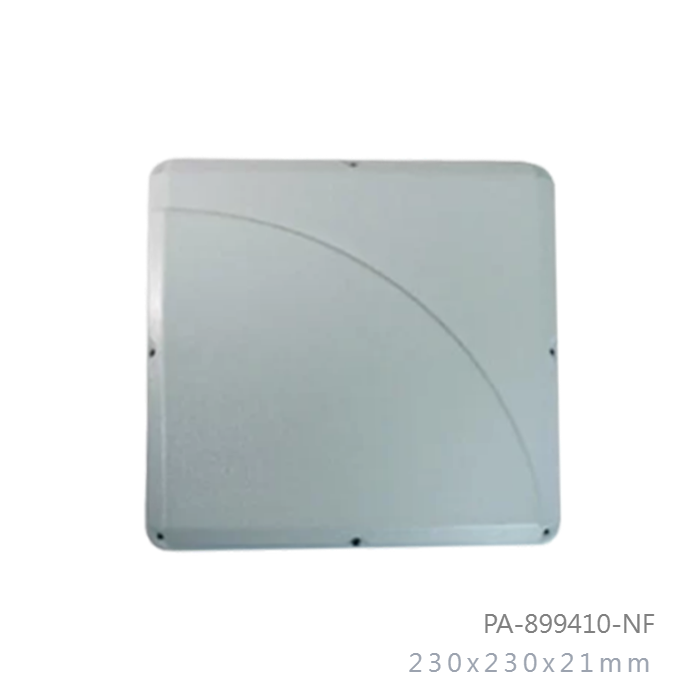

Model No: PA-899410-NF

Datasheet:Download

  • Dimensions: 230x230x21mm
  • Weight: 150g
  • Connector: N-Female
  • -3dB Beamwidth: Horz.31deg Vert.57deg
INQUIRY

Applications:

  • 890MHz to 940MHz 9dBi Panel Directional Antenna
  • IEEE 802.22 WRAN
  • Point to Point Bridge
  • Multipoint Application
  • Bluetooth
  • Public Wireless hotspots
  • Wireless Video Systems

Features:

  • Superior performance
  • Lightweight
  • Good appearance design
  • DC Short lightning protection
  • Support is up and down or so to adjust
  • Behind and support is made of aluminum
  • Outdoor antenna for public hotspots
  • Includes tilt and swivel mast mounting brackets
  • RoHS Compliant

Frequency Range

890MHz - 940MHz

V.S.W.R (MAX)

1.3 :1

Antenna Type

Patch Type

Radiation

Directional

Gain (Avg)

9 dBi

Polarization

Vertical

Maximum Power

5 Watts

Vertical Beamwidth

50 Deg

Horizontal Beamwidth

54 Deg

Impedance

50 Ohm

Antenna Design

One Patch

Internal Material

FR4 (Taiwan)

Connector

N-Female

Length

375mm

Diameter (MAX)

375x25mm

Antenna Weight (G.W)

1000 g

Accessories (G.W)

300 g

Application

Indoor / Outdoor

Radome Material

White ABS

Mount Style

Pole Mount

Parts Material

Aluminum

Mounting

Stainless Steel and Aluminum

Wind Survival

Greater than 150MPH

Storage Temperature

-40 to +80

Operating Temperature

-40 to +60

Operating Humidity

10%~90% non-condensing

Storage Humidity

5%~90% non-condensing

Safety, Emission and other

 RoHS, WEEE
